1Pc ICM-20948 9-Axis MEMS Motion Sensor, 3-Axis Gyro Accel Magnetometer

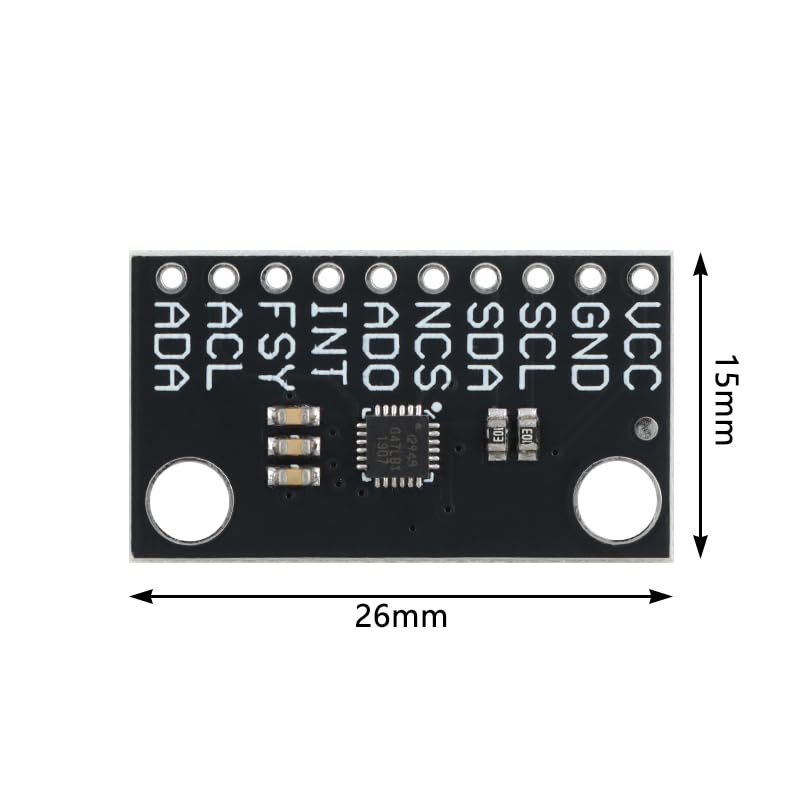

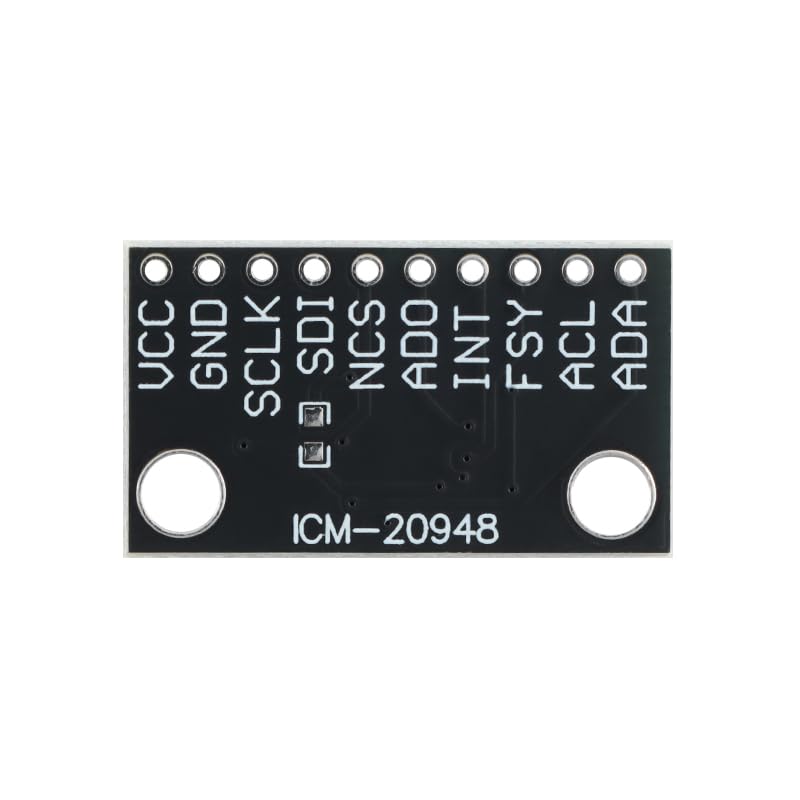

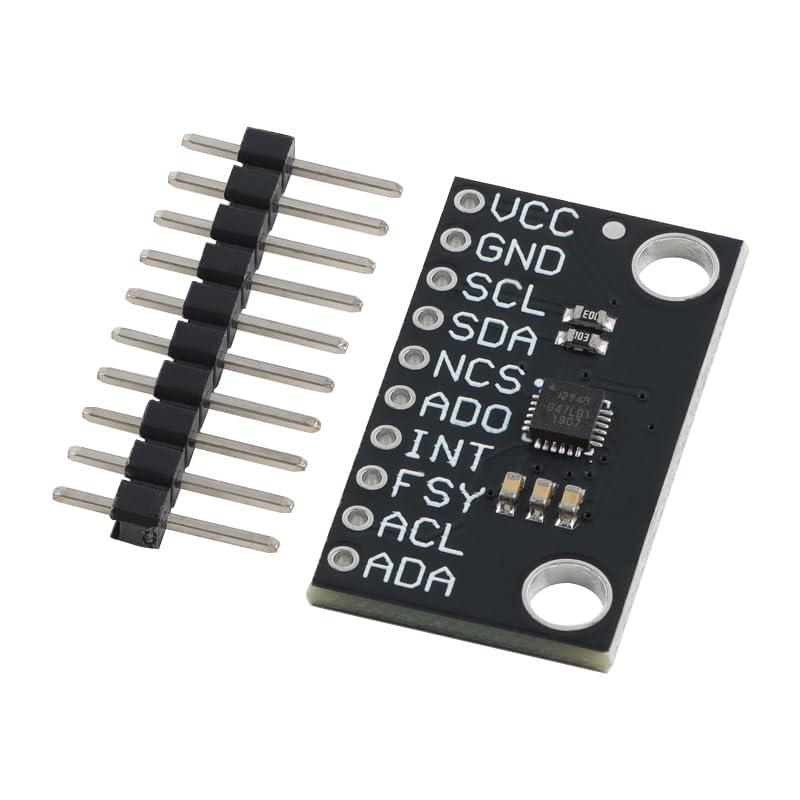

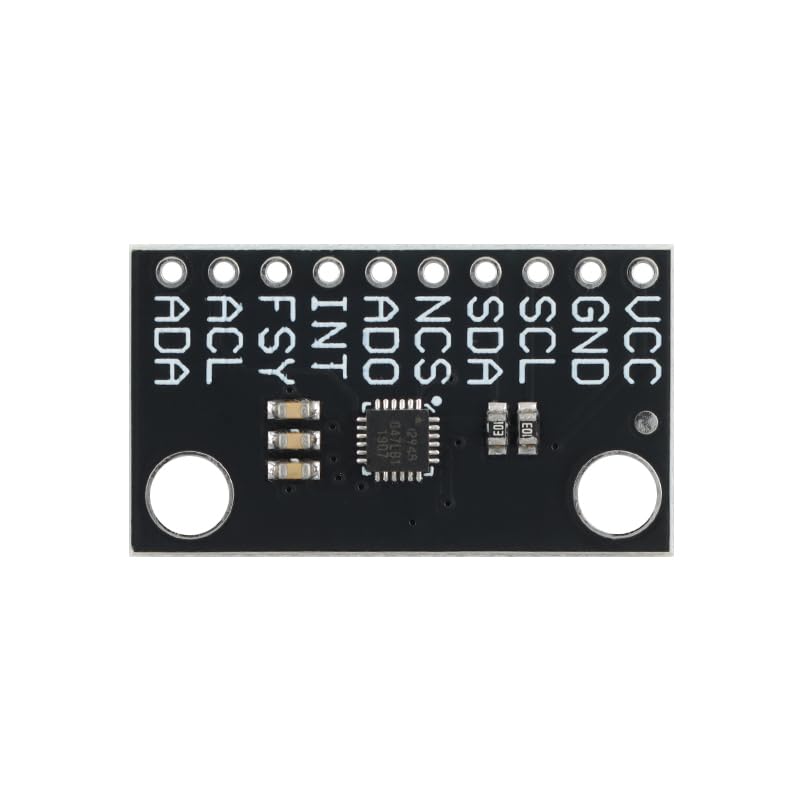

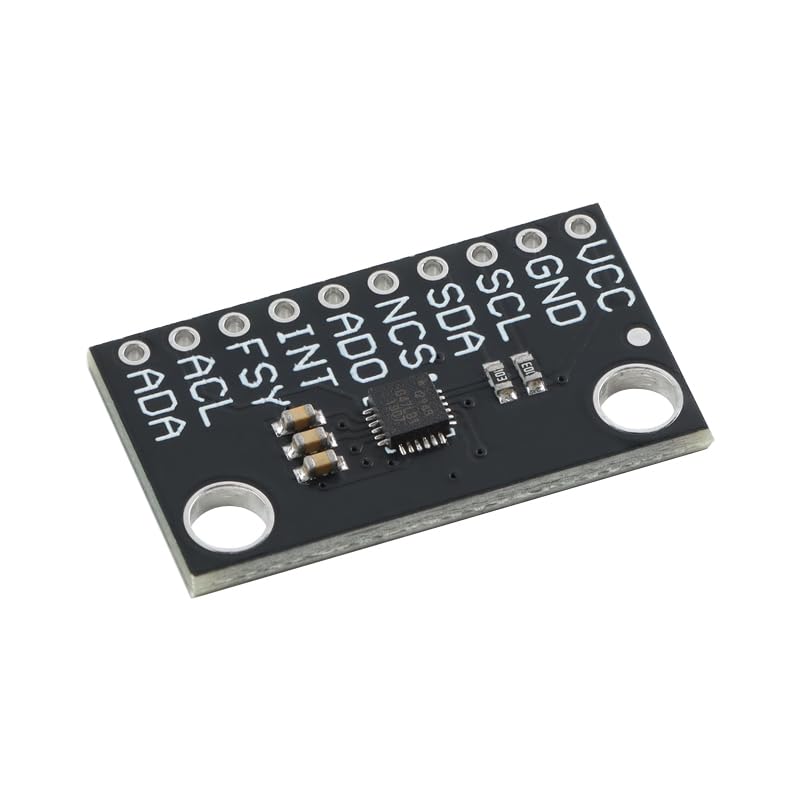

The ICM-20948 9-Axis Motion Tracking Module is a low-power inertial measurement unit that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer. It provides complete motion and orientation data for applications requiring acceleration, angular velocity, magnetic-field, and temperature measurements.Product ParametersProduct Name: ICM-20948 9-Axis Motion Tracking ModuleSensor Type: 9-axis IMUSensor Configuration: 3-axis gyroscope + 3-axis accelerometer + 3-axis magnetometerGyroscope Range: ±250 / ±500 / ±1000 / ±2000°/sAccelerometer Range: ±2g / ±4g / ±8g / ±16gMagnetometer Range: Up to ±4900 μTADC Resolution: 16-bitDigital Processor: Integrated Digital Motion Processor (DMP)Main Communication Interfaces: 7 MHz SPI / 400 kHz fast-mode I²CAuxiliary Interface: I²C master interface for external sensorsOperating Voltage: 1.71V–3.6VPin DescriptionVCC: Positive power supply inputGND: Power supply groundSCL: IIC serial clock lineSDA: IIC serial data lineADO: IIC slave address least-significant-bit selection pinINT: Programmable interrupt outputFSY: Frame synchronization digital input; connect to GND if unusedACL: Auxiliary IIC master serial clock interface for external sensorsADA: Auxiliary IIC master serial data interface for external sensors

• Precise 9-Axis Motion Tracking Module: Built with a 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass, the ICM-20948 delivers accurate motion sensing for orientation, gesture recognition, navigation, and real-time movement tracking in smart devices.
• Ultra-Low Power for Portable Devices: Engineered for power efficiency, this low-power 9-axis sensor consumes as little as 2.5mW, making it an excellent choice for battery-powered products such as wearables, smartphones, tablets, and IoT devices.
• Flexible Sensing Ranges for Better Control: The programmable full-scale ranges offer reliable performance across different applications, with gyro sensitivity up to ±2000 DPS, accelerometer ranges up to ±16g, and compass measurement up to ±4900 μT for precise motion detection.
• Rich Built-In Features Easy Integration: Featuring an onboard Digital Motion Processor (DMP), embedded temperature sensor, on-chip 16-bit ADC, programmable digital filter, and programmable interrupts, this sensor helps simplify system design and improve signal processing efficiency.
• Broad Compatibility and External Support: With a 1.71V to 3.6V operating range, I²C interface, 7MHz high-speed SPI, and an auxiliary I²C port for external sensors, the ICM-20948 offers excellent flexibility for development across consumer electronics and smart sensing applications.
